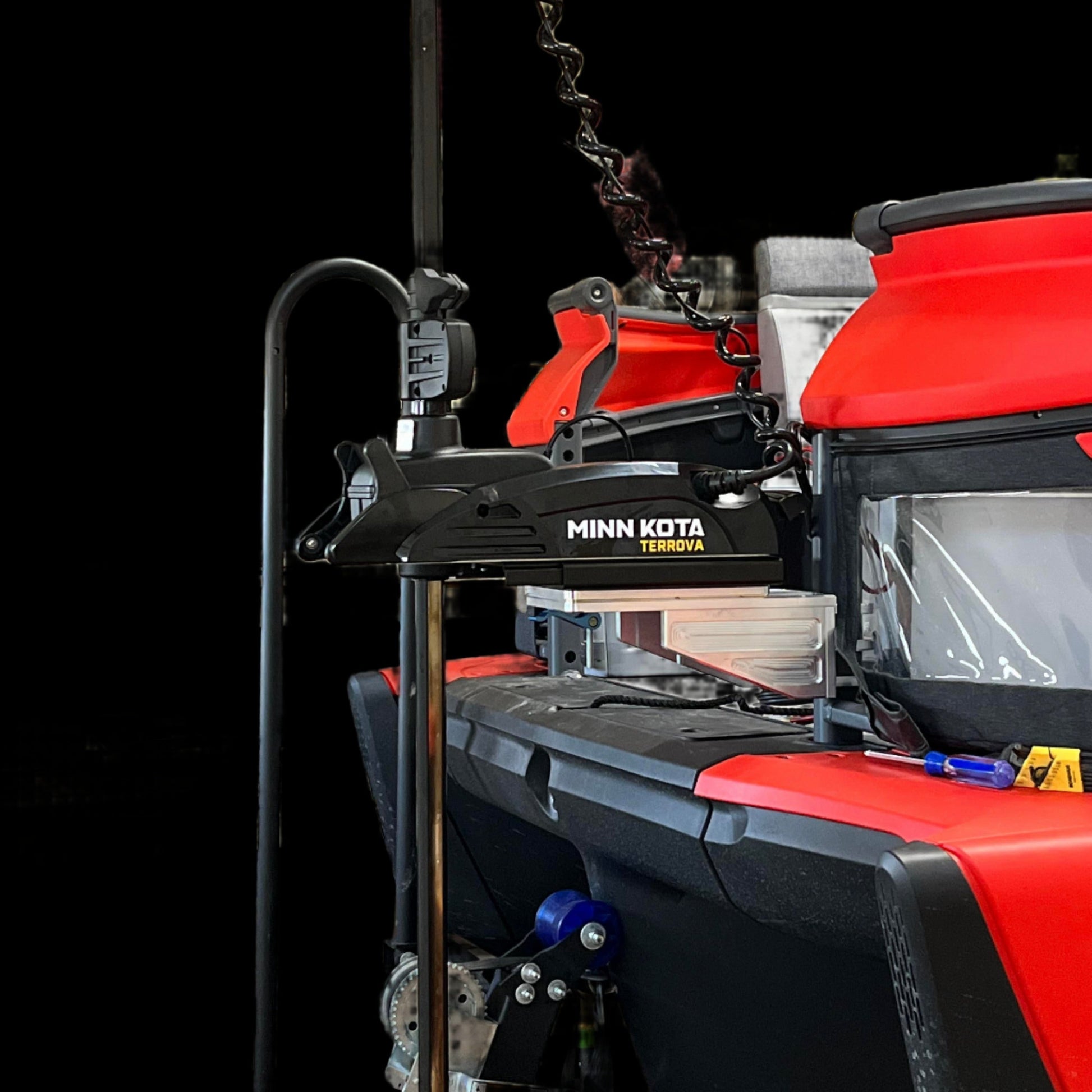

SwitchBlade + Shaft Support Bundle – No-Drill Sea-Doo Switch Kit

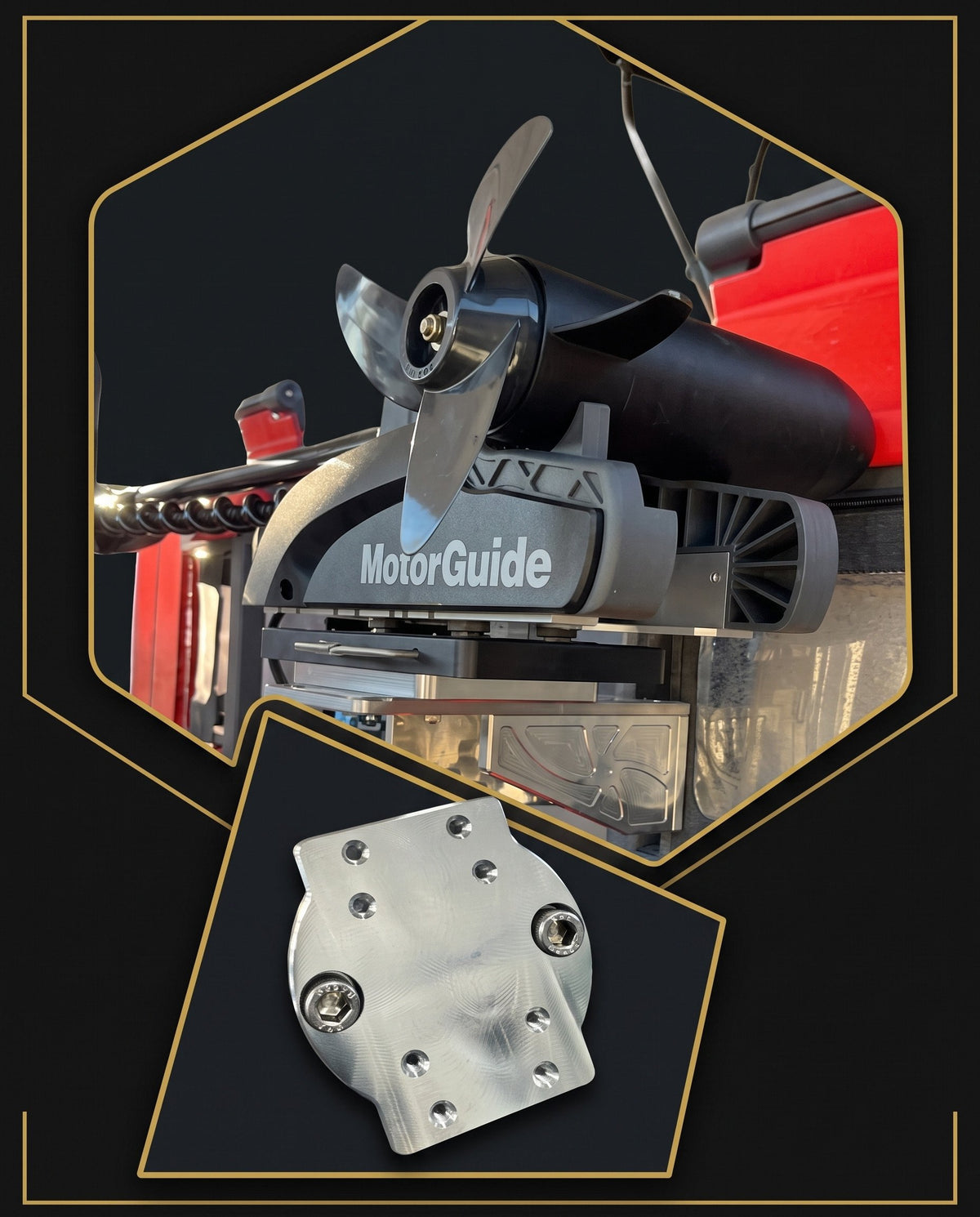

This package includes the Switchblade Trolling Motor Mount and our motor shaft support arm mounting bracket — everything you need to cleanly and securely mount a RAM Mounts trolling motor shaft support arm on your Sea-Doo Switch.

Not sure what to order? See our Switchblade Compatibility Matrix

What's in the Box

• Switchblade Trolling Motor Mount — with all hardware required to bolt it to your Sea-Doo Switch gate posts
• RAM Mounts Shaft Support Arm Mounting Bracket — with machine screws for attaching your RAM Mounts shaft support arm to the bracket

Quick detach bracket and RAM Mounts shaft support arm are NOT included — purchased separately from your motor manufacturer or RAM Mounts.

Bundle Includes

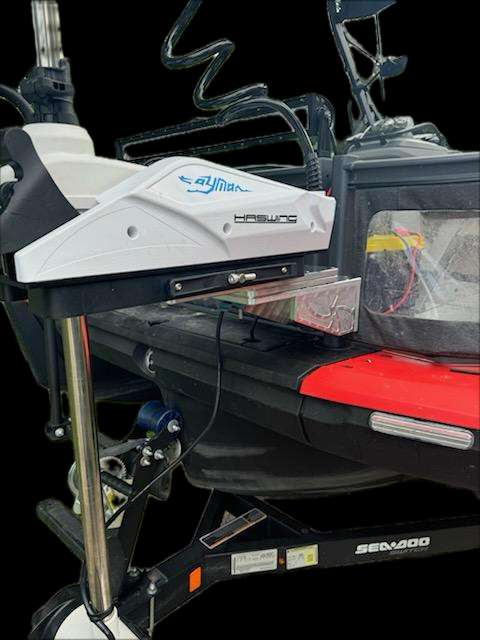

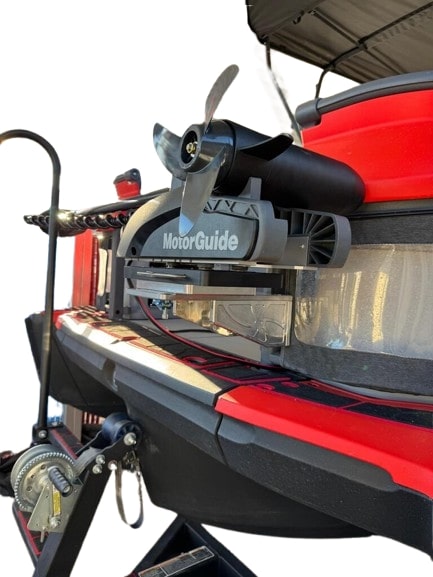

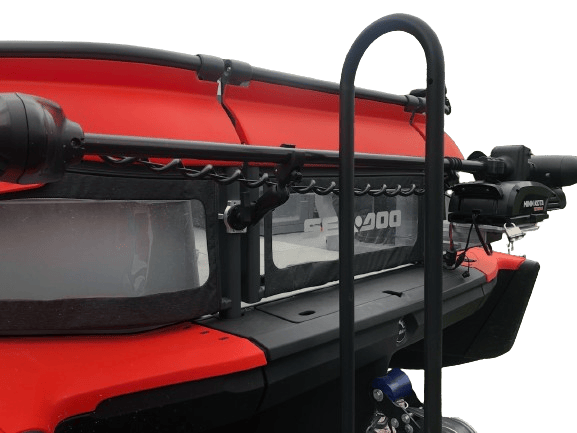

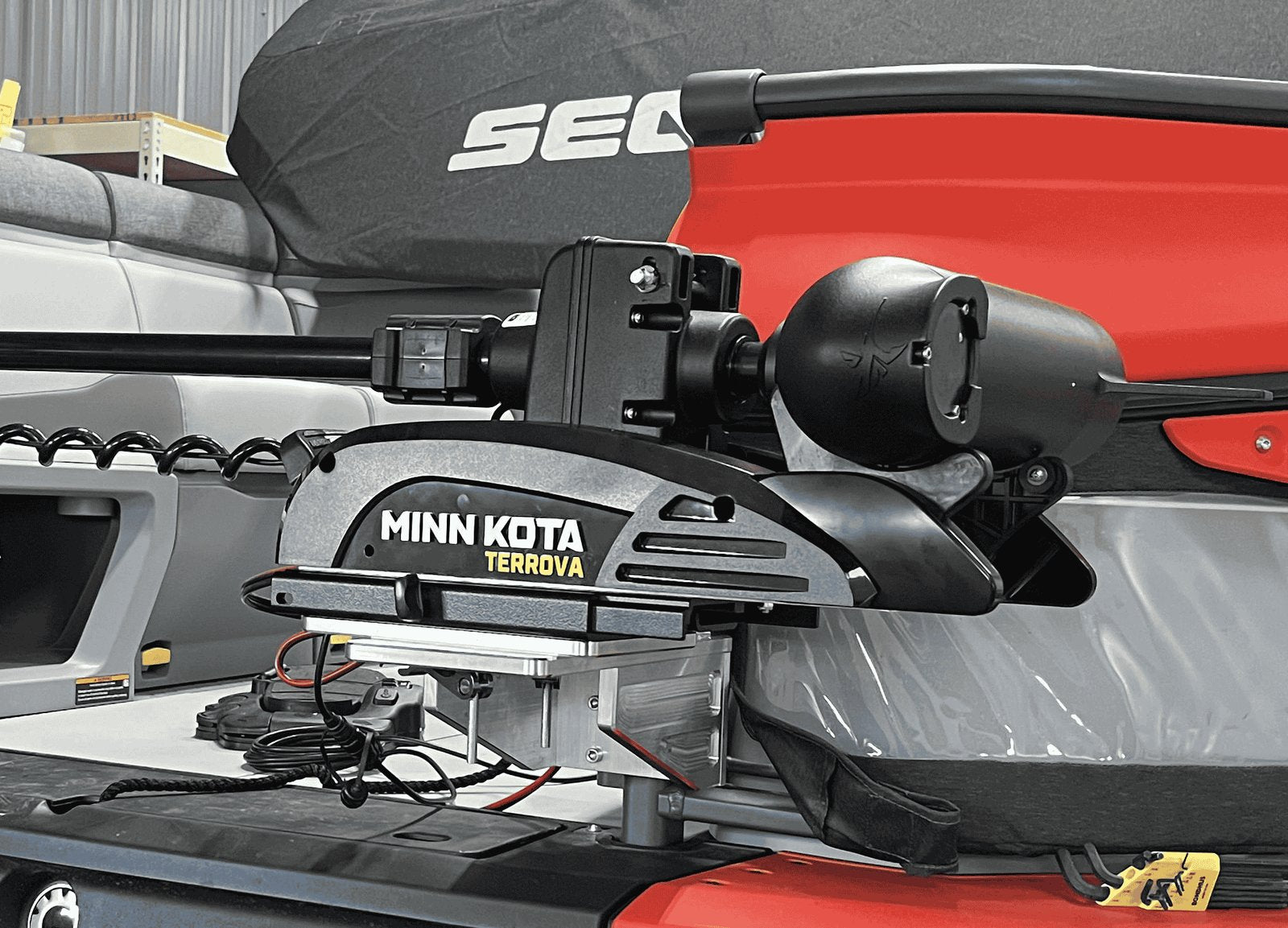

1. Switchblade Trolling Motor Mount
Precision CNC-machined from 6061 aircraft-grade aluminum for superior durability and corrosion resistance. Fits all Sea-Doo Switch models with 2.15" x 1.6" front gate posts and securely mounts your trolling motor close to the centerline without obstructing the trailer ladder, anchor box, or front gate. Rotate 90° to stow the motor across the front deck without blocking gate access. 100% bolt-on — no drilling required.
Requires quick detach bracket purchased separately from your motor manufacturer or reseller.

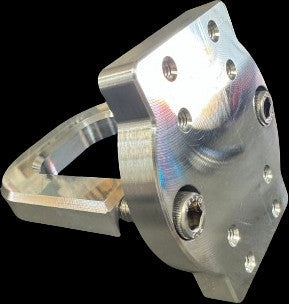

2. Shaft Support Arm Mounting Bracket
CNC-machined billet aluminum bracket that mounts directly to the SwitchBlade and provides a solid, no-drill attachment point for a RAM Mounts Tough-Claw trolling motor shaft stabilizer arm. Keeps your motor shaft secure while trailering or running at speed. Includes machine screws for mounting your RAM Mounts shaft support arm.

You'll Also Need a RAM Mounts Shaft Stabilizer Arm

This bracket gives you the attachment point — you'll pair it with a RAM Mounts Tough-Claw shaft stabilizer arm to complete your setup. Both kits use RAM's "medium" double socket arm length; the difference between them is clamp size, not arm length. Select based on your motor's shaft diameter:

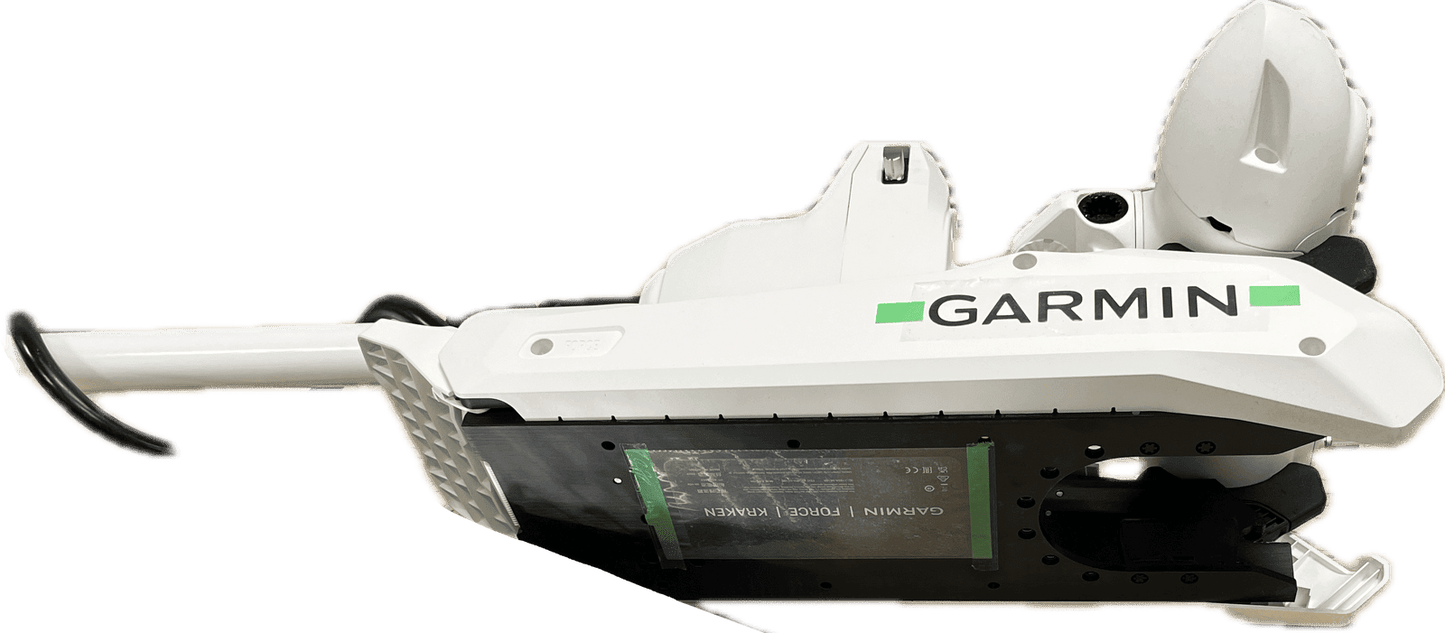

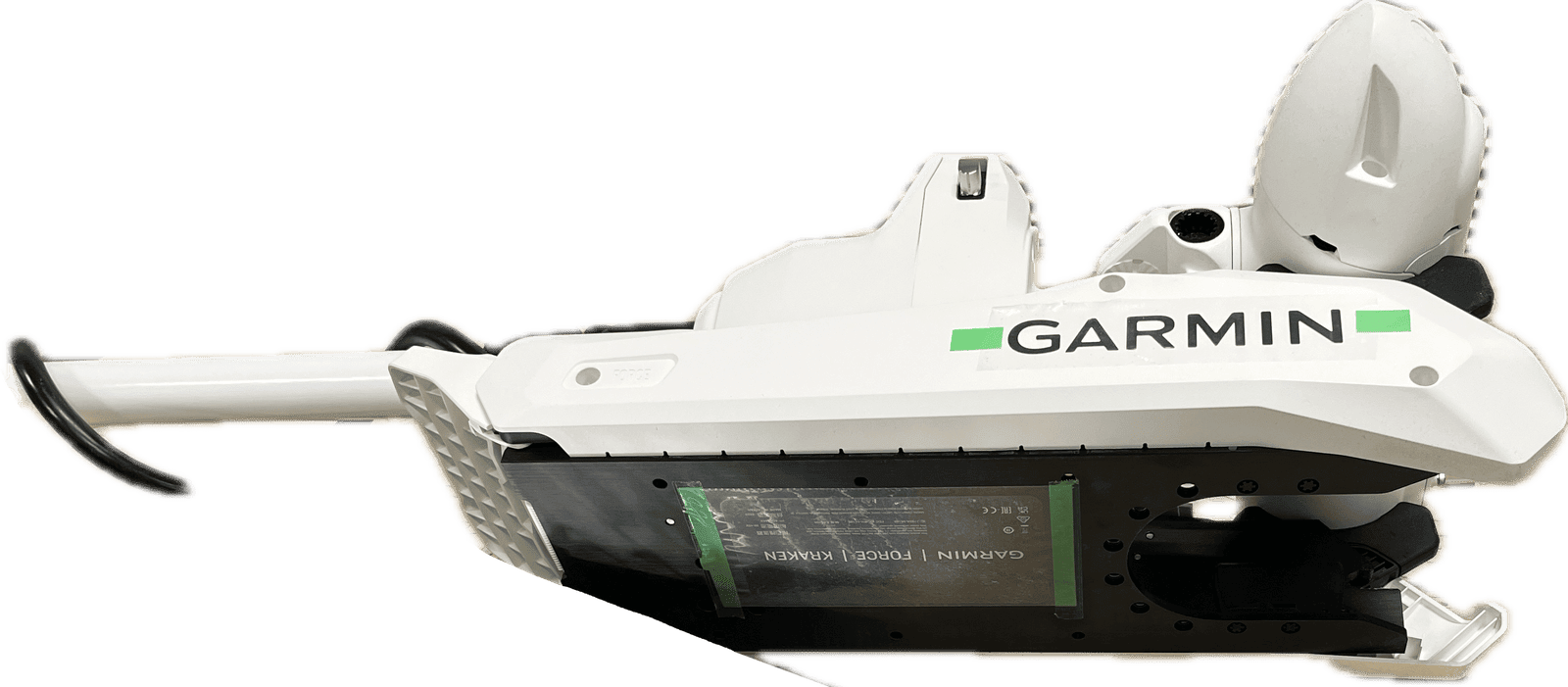

Not sure which you need? If your motor isn't a Garmin Force Kraken or Minn Kota Terrova Quest, get the small clamp above.

As an Amazon Associate, Upgrade Machine Works earns from qualifying purchases. This helps support our small USA shop at no additional cost to you.

USA Made Quality

Made in the USA. Each unit is individually machined to order in our Billings, MT facility. Ships within 10 business days.

Technical Specifications

• Material: 6061-T6 Aluminum (aircraft grade)
• Compatibility: All Sea-Doo Switch models 2021–2026 with 2.15" x 1.6" front gate posts
• Motor Type: Bow mount trolling motors with quick-detach brackets
• Installation: 100% bolt-on, no drilling required
• Rotation: 90° swivel capability
• Weight Capacity: Supports motors up to 80 lbs thrust

*Intended for use with trolling motors up to 80 lbs of thrust. Use with motors producing thrust in excess of 80 lbs may cause damage to the Switch railing system or mount.
*Does not work in conjunction with automatic deploy/stow features found on some trolling motors.

Download Switchblade Installation Manual

📋 New to the full setup? Complete Sea-Doo Switch Fishing Setup Guide →
